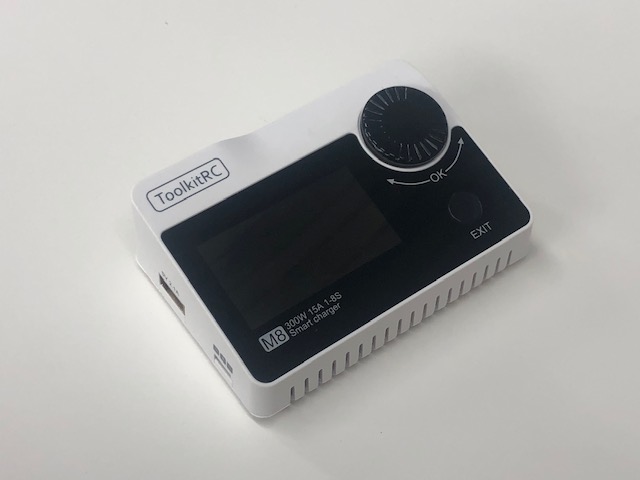

This handy ToolkitRC M8 Smart charger is compact, yet powerful and versatile, too. More than merely a charger, although at 300w and 15A it's plenty capable, the smart charger is also a servo tester, cell checker, a watt meter, PWM/PPM/S-bus input tester, output generator, plus it delivers both variable voltage and amperage through the DC output control (for whatever purpose you may have in mind). This compact tool has earned it's way into my flight box, and maybe into yours, too! Connect via XT-30.
- Charger:
- Input voltage: 7.0-30.0V @MAX 16A
- Type of battery: Lipo LiHV LiFe @1-8S, NiMh @1-20S, Pb @1-10S
- Balance current: 400mA @2-8S
- Charge power: 300W @MAX 15A
- Discharge power: 300W @MAX 15A Recycle mode, 12W@3A Normal mode
- USB: 2.1A @5.0V or Upgrade
- Measuring:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Voltage: 1.0-5.0V @1-8S
- Internal resistance: 10-500mR @1-8S
- ESC: 300W @Max 15A
- Output:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Power: 1.0-30.0V @1.0-15A Mode:CC+CV
- OverCurrent Cut Off time: 50ms
- General:
- Dimensions: 98x68x35mm
- Color: White
- Weight: 142g
- LCD: 2.2inch, 132x64 Pixel, black and white
