25T

This precision ProModeler Gear Wheel has 12-teeth and fits all ProModeler servos equipped with a 25T ø6 mm spline shaft - to include sub-micro, micro, mini, and standard-size DL-series, BLS0, and BLS1 servos, plus compatibles from our quality competitors like Futaba, Savox, MKS, et al. Fabricated of 303 stainless steel, this 6.35mm wide (0.250 in) precision-grade gear wheel (20° pressure angle) is both stronger and longer lasting than standard-grade brass gears. The gear begins life as a solid...

Notice: failure to torque the cinch bolt to 1.5N-m may result in inadequate fit This ultra duty SINGLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard 25T spline, and threaded in 4X on 5mm centers for M2 linkage hardware. Installation Fitted axially on a nominal 6mm diameter, 25T standard-spline shaft (lightly greased), secure axially with a stainless steel M3x8 bolt torqued to 2.0N-m. Then cinched radially with a stainless...

CNC-machined from a solid billet of aircraft aluminum, installation is axially on the output shaft, which we advise first lightly greasing, and then securing with an M3 Allen-head machine-thread bolt. We also advise using a locking device (lock or star washer) or chemical threadlocker. Disassembly is the reverse. - There are 3 standard size ProModeler servos suitable for an X-MAXX  Note; and by way of heads up . . . we advise not using this control horn for servos other than our...

This precision ProModeler Gear Wheel has 20-teeth and fits all ProModeler servos equipped with a 25T ø6 mm spline shaft - to include sub-micro, micro, mini, and standard-size DL-series, BLS0, and BLS1 servos, plus compatibles from our quality competitors like Futaba, Savox, MKS, et al. Fabricated of 303 stainless steel, this 6.35mm wide (0.250 in) precision-grade gear wheel (20° pressure angle) is both stronger and longer lasting than standard-grade brass gears. The gear begins life as a solid...

Notice: failure to torque the cinch bolt to 1.5N-m may result in inadequate fit This ultra duty SINGLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard 25T spline, and threaded in 6X on 5mm centers for M2 linkage hardware. Installation Fitted axially on a nominal 6mm diameter, 25T standard-spline shaft (lightly greased), secure axially with a stainless steel M3x8 bolt torqued to 2.0N-m. Then cinched radially with a stainless...

This RDS (Rotary Drive System) adapter is 25mm long and fits servos with standard-size 6mm-25T ISO splines like ProModeler (to include sub-micro, micro, mini, and standard sizes) as well as compatible servos, e.g. from Savox, MKS, et al. How do you use this thing? Common practice for using these is to glue in a short length of pultruded carbon fiber tubing (using JB Weld steel-filled epoxy), to form the basis of the linkage. From there the limits are your imagination! Note1; we also offer...

Notice: failure to torque the cinch bolt to 1.5N-m may result in inadequate fit This ultra duty SINGLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard 25T spline, and threaded in 3X on 5mm centers for M3 linkage hardware. Installation Fitted axially on a nominal 6mm diameter, 25T-spline shaft (lightly greased), secure axially with a stainless steel M3x6 socket cap (Allen) machine-thread bolt torqued to 2.0N-m. Then cinched...

This heavy duty DOUBLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard spline (25T ø6mm), and threaded in six places for M3 mounting hardware on 5mm centers. Installation is axially on 6mm diameter, 25T-spline shaft (lightly greased), and secured, then cinched with M3 Allen-head machine-thread bolts. Disassembly is the reverse, loosen cinch bolts, then remove securing bolt. Mounting positions (M3 thread) both horns 15.4mm...

Combines a steering-horn rated to 3000oz-in, plus one HVE-rated for throttle. Best servo horn steer/throttle solution made - ideal for the biggest and baddest hydros. Included are: PDRS25-25T Ultraduty-25 servo horn (3000oz-in)PDRS105 HVE-rated throttle horn (High Vibration Environment) This is everything needed to harness a record breaking heavyweight hydro at +100mph. In brief, this ultraduty25 horn is rated to 3000 ounce-inches (making it ideal for stump pulling duty). Meanwhile, the...

Notice: failure to torque the cinch bolt to 1.5N-m may result in inadequate fit This ultra duty SINGLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard 25T spline, and threaded 5X on 5mm centers for M2 linkage hardware. Installation Fitted axially on a nominal 6mm diameter, 25T-spline shaft (lightly greased), secure axially with a stainless steel M3x6 socket cap (Allen) machine-thread bolt torqued to 2.0N-m. Then cinched...

This heavy duty pulley is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the ISO25 spline (25T ø6mm). Installation is axially on the 8mm diameter, 25T-spline shaft (lightly greased), and secured, with M3 Allen-head machine-thread bolt. Disassembly is the reverse, begin by removing the M3 bolt securing the leader cable to the pulley, then the M3 bolt securing the pulley to the splined output shaft. What secures the cable from slipping is the figure of 8 made by the...

Notice: failure to torque the cinch bolt to 1.5N-m may result in inadequate fit This ultra duty SINGLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard 25T spline, and threaded 5X on 5mm centers for M3 linkage hardware. Installation Fitted axially on a nominal 6mm diameter, 25T-spline shaft (lightly greased), secure axially with a stainless steel M3x6 socket cap (Allen) machine-thread bolt torqued to 2.0N-m. Then cinched...

Notice: to snug the M3 bolt for the splines, use vise grips to tighten before securing the Allen head boltThis heavy duty DOUBLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard spline (25T ø6mm), and threaded in twelve places for M3 mounting hardware on 5mm centers. Installation is axially on 6mm diameter, 25T-spline shaft (lightly greased), and secured, then cinched with M3 Allen-head machine-thread bolts. Disassembly is the...

Notice: failure to torque the cinch bolt to 1.5N-m may result in inadequate fit This ultra duty SINGLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard 25T spline, and threaded 6X on 5mm centers for M3 linkage hardware. Installation Fitted axially on a nominal 6mm diameter, 25T-spline shaft (lightly greased), secure axially with a stainless steel M3x6 socket cap (Allen) machine-thread bolt torqued to 2.0N-m. Then cinched...

This heavy duty pulley is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the ISO25 spline (25T ø6mm). Installation is axially on the 6mm diameter, 25T-spline shaft (lightly greased), and secured, with M3 Allen-head machine-thread bolt. Disassembly is the reverse, begin by removing the M3 bolt securing the leader cable to the pulley, then the M3 bolt securing the pulley to the splined output shaft. What secures the cable from slipping is the figure of 8 made by the...

Notice: failure to torque the cinch bolt to 1.5N-m may result in inadequate fit This ultra duty SINGLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard 25T spline, and threaded 7X on 5mm centers for M3 linkage hardware. Installation Fitted axially on a nominal 6mm diameter, 25T-spline shaft (lightly greased), secure axially with a stainless steel M3x6 socket cap (Allen) machine-thread bolt torqued to 2.0N-m. Then cinched...

Notice: failure to torque the cinch bolt to 2.2N-m may result in inadequate fit This ultra duty SINGLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard 25T spline, and threaded in eight places on 5mm centers for M3 hardware. Installation is axially on a nominal 6mm diameter, 25T-spline shaft (lightly greased), secured axially with M3 bolt torqued to 1.5N-m then cinched radially with stainless steel M3 Allen-head machine-thread...

Notice: to snug the M3 bolt for the splines, use vise grips to tighten before securing the Allen head bolt This heavy duty DOUBLE-HORN aluminum servo arm is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the standard spline (25T ø6mm), and threaded in sixteen places for M3 mounting hardware on 5mm centers. Installation is axially on 6mm diameter, 25T-spline shaft (lightly greased), and secured, then cinched with M3 Allen-head machine-thread bolts. Disassembly is...

This heavy duty pulley is CNC-machined from a solid billet of 7075-T6 aircraft aluminum, broached for the ISO25 spline (25T ø6mm). Installation is axially on the 6mm diameter, 25T-spline shaft (lightly greased), and secured, with M3 Allen-head machine-thread bolt. Disassembly is the reverse, begin by removing the M3 bolt securing the leader cable to the pulley, then the M3 bolt securing the pulley to the splined output shaft. What secures the cable from slipping is the figure of 8 made by the...

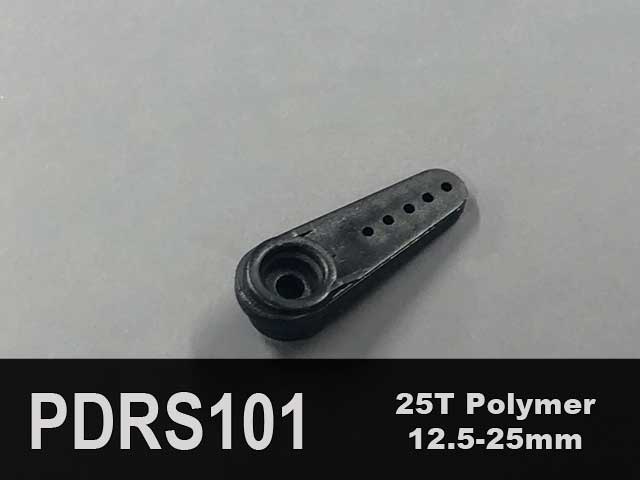

Made of heavy duty plastic (technically a fiber-filler engineering polymer like is found in 9mm handgun frames), this tough servo horn is suitable up to 630oz-in. Dimensions: ø6mm, 25-spline (Futaba-compatible) 1st bore: 12mm2nd bore: 15mm3rd bore: 18mm4th bore: 21mm5th bore: 24mmNote; you have to decide on quantity before you add them to your shopping cart, so if you select quantity 5, and then within the shopping cart notice it only says qty 1 and change it there to quantity 5, then what...

Made of heavy duty plastic (technically a fiber-filler engineering polymer like is found in 9mm handgun frames), this tough double-arm servo horn is suitable up to 400oz-in. Dimensions: ø6mm, 25-spline (Futaba-compatible) 1st bore pair across: 24mm2nd bore pair across: 30mm3rd bore pair across: 37mm4th bore pair across:43mm5th bore pair across: 49mmNote; you have to decide on quantity before you add them to your shopping cart, so if you select quantity 5, and then within the shopping cart...

2-horn servo arm, small, quantity 1, black nylon 6,6, 25T spline

4-horn servo arm, quantity 1, black nylon 6,6, 25T spline

Made of heavy duty plastic (technically a fiber-filler engineering polymer like is found in 9mm handgun frames), this super tough servo horn is ideal for use in steering mechanism of RC trucks - suitable for servos up to 630oz-in. Dimensions: ø6mm, 25-spline (Futaba-compatible) 1st bore: 15mm2nd bore: 20mmNote; you have to decide on quantity before you add them to your shopping cart, so if you select quantity 5, and then within the shopping cart notice it only says qty 1 and change it there to...

6-horn servo arm, quantity 1, black nylon 6,6, 25T spline

21mm in OD, the round servo-horn is often referred to as a wheel-arm. Injection molded in rugged nylon 6.6, which is a type of heavy duty plastic (fiber-filler engineering polymer), this is the same stuff used in 9mm handgun frames because it's so tough. Simple in appearance but complex in execution (what makes making these actually rather pricey), the molding for this arm has a total of 13 bores (that's what we call them, but everybody else calls them holes). Of course, there's one on center...

This servo arm, latch, LEFT features a slot designed for a release pin 19.5mm from center. Ideal for bomb and tow hook release mechanisms. - This latch arm, left, is slotted at 19.5mm (also show is right) - referred to as starboard and port for right and left - CNC machined of 6061-T6 aircraft aluminum we broach the inner splines - the trick to the nifty coils for the servo lead is just a bit of heat ...

This servo arm, latch, RIGHT features a slot designed for a release pin 19.5mm from center. Ideal for bomb and tow hook release mechanisms.- This latch arm, left, is slotted at 19.5mm (also show is right) - referred to as starboard and port for right and left - CNC machined of 6061-T6 aircraft aluminum we broach the inner splines - the trick to the nifty coils for the servo lead is just a bit of heat ...
