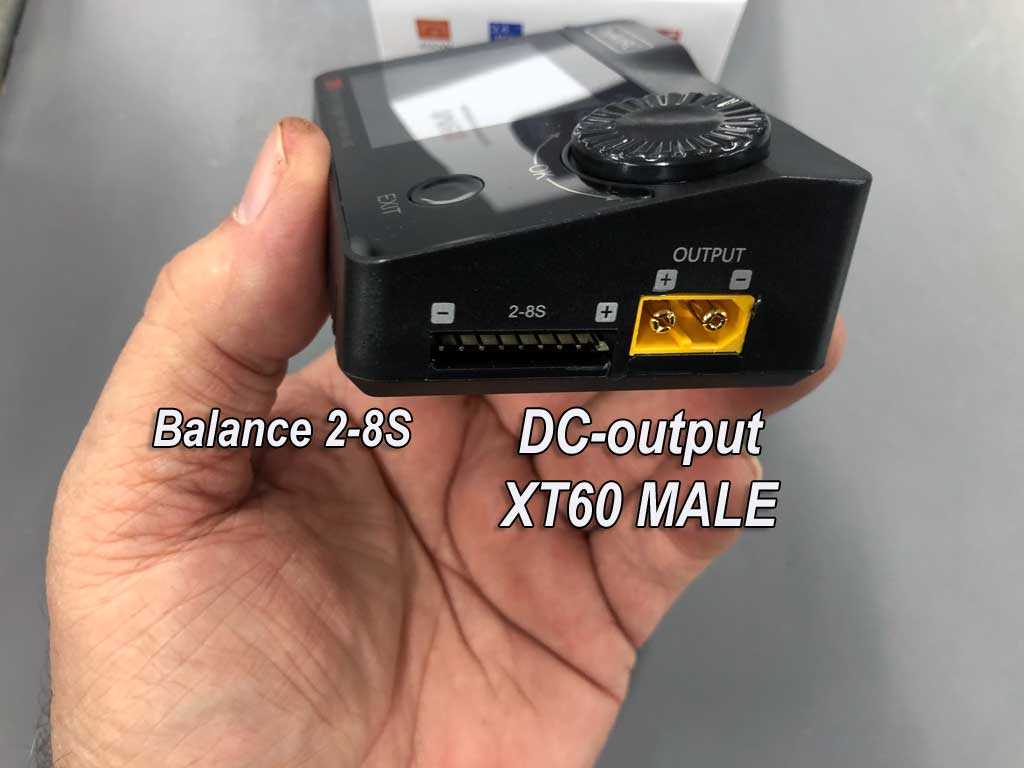

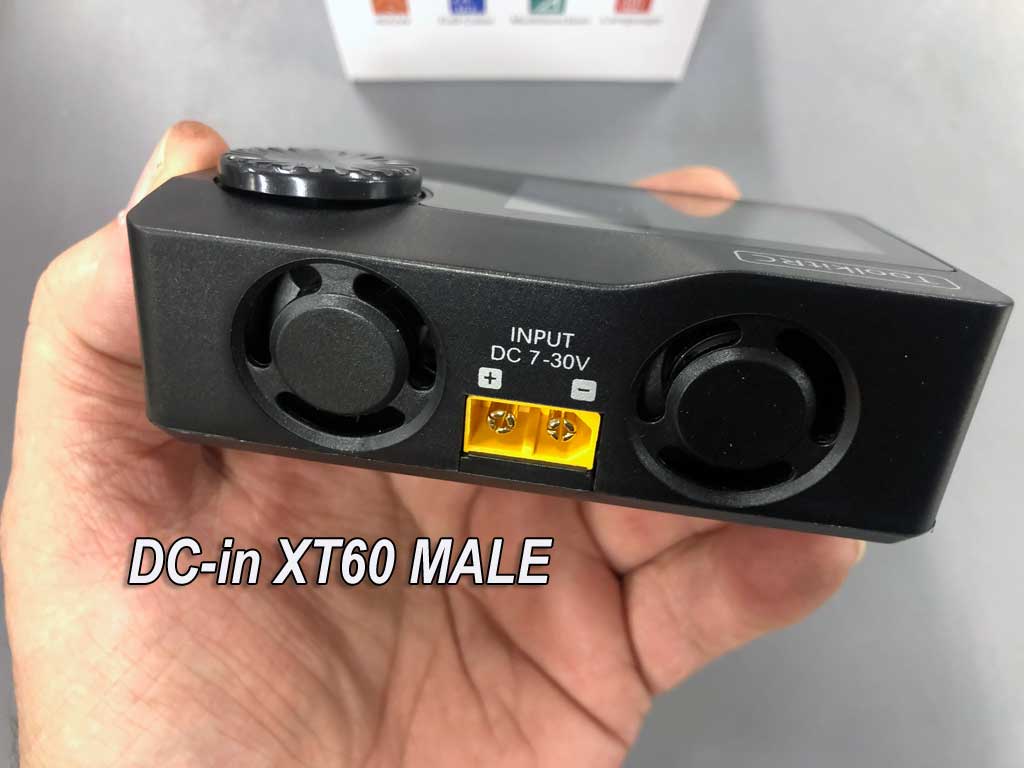

XT60 connections

Complements M4 Pocket

Price: $49.99

    Quantity:
    Item #: PDR310
    Availability: In stock
    Usually ships In the same business day

    These are nice little chargers. I have long ago ditched the idea of using a single expensive charger with two channels (the so called, dual-charger). Why? because chargers crap out occasionally. Why? I don't know but I've tossed three +$200 chargers that died on me over the last few years. Another thing is, those were AC-based chargers and I've come to the conclusion I'm better off using these inexpensive DC-chargers. Why? In part because two of my dead chargers (top quality Thunder Power, too) died on the AC-power side and repair parts were impossible to obtain. The other died when a balance component went teats up and again, repair parts were unavailable.

    However, I like DC-chargers better due to greater versatility. Basically, it's because I can use DC-chargers both in the field and in the shop with an inexpensive DC-power supply. How? In the car by connecting to the battery either through a cigarette lighter plug, large alligator clamps, or through a USB-C connection (many cars have these, as do lots of laptops these days). Note; we offer input leads separately or go on Amazon and buy el cheapo versions for a few bucks less. Funny thing is, our I/O leads are so good we occasionally have folks come to us 'after' buying their chargers elsewhere - go figure!

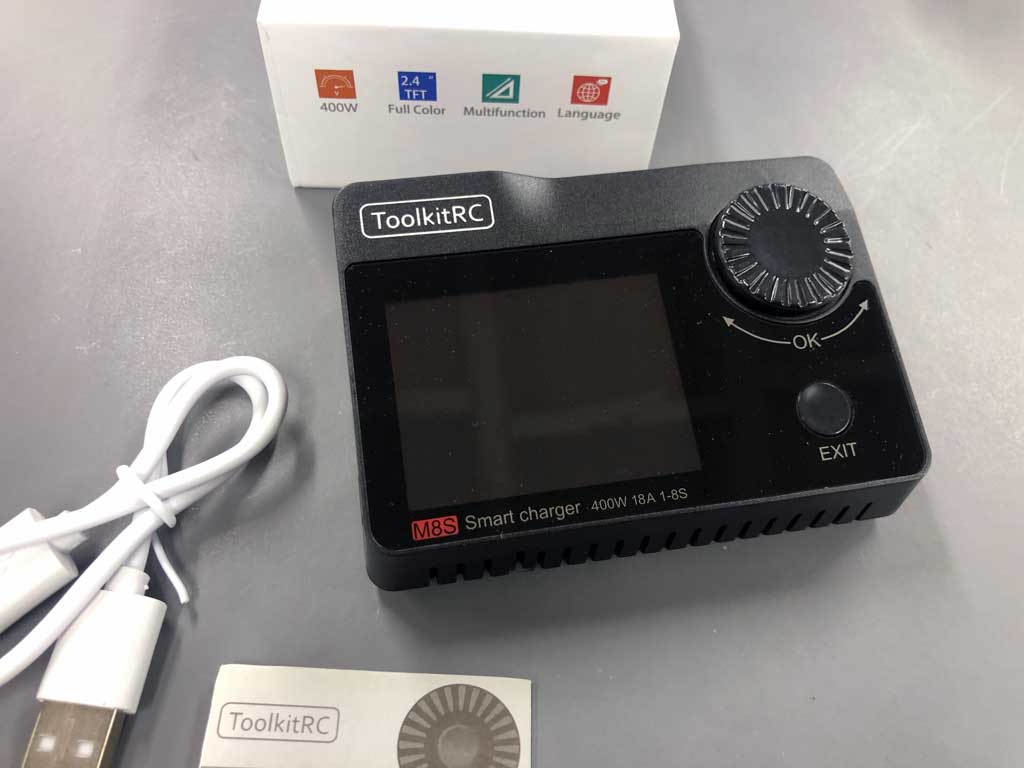

    So why these chargers? They're inexpensive, they work well, and they're so compact I can have several. For example, I have four M8S set up on our ProModeler ProTote expressly for field use (the link opens in a new tab for convenience). A ProTote for field charging is perfect when I go fly and there's no available power (especially useful at fun flies when too many people need to use power and there aren't enough outlets - keeps me independent).

    Last thing is this; I especially appreciate the redundancy they bring. Earlier I mentioned my pricey dual-channel chargers. While they're sold with the idea one single charger does two batteries at a time, what this also means is one dead charger takes all my charge capacity with it when it dies. But with a pair of these compact chargers, if one craps out (and only God is perfect), then I'm down to 50% capacity which is better than 0%. I have time to order another (and likely pay less that repair parts would cost had they been available).

    Anyway, I start the charge cycle while I'm making coffee in the shop and by the time I'm done loading models, they're usually done. This is important to me because I don't like to charge batteries unattended (due to fire risk). This makes it easy to keep an eye on things while the flight packs charge.

    Also, while I don't need it often, I pack an M4 Pocket with me also to the field (for the off chance I need to top up a receiver pack). Finally, like I said, we offer input leads with both cigarette lighter plug, large alligator clamps for direct connection to the car battery terminals, plus USB-C. Those, and output leads, too. All are top quality, and sheathed in mesh. This, so they don't get tangled (or just get your own el cheapos off Amazon).

    • Charger:
      • Input voltage: 7.0-30.0V @MAX 16A
      • Type of battery: Lipo LiHV LiFe @1-8S, NiMh @1-20S, Pb @1-10S
      • Balance current: 400mA @2-8S
      • Charge power: 300W @MAX 15A
      • Discharge power: 300W @MAX 15A Recycle mode, 12W@3A Normal mode

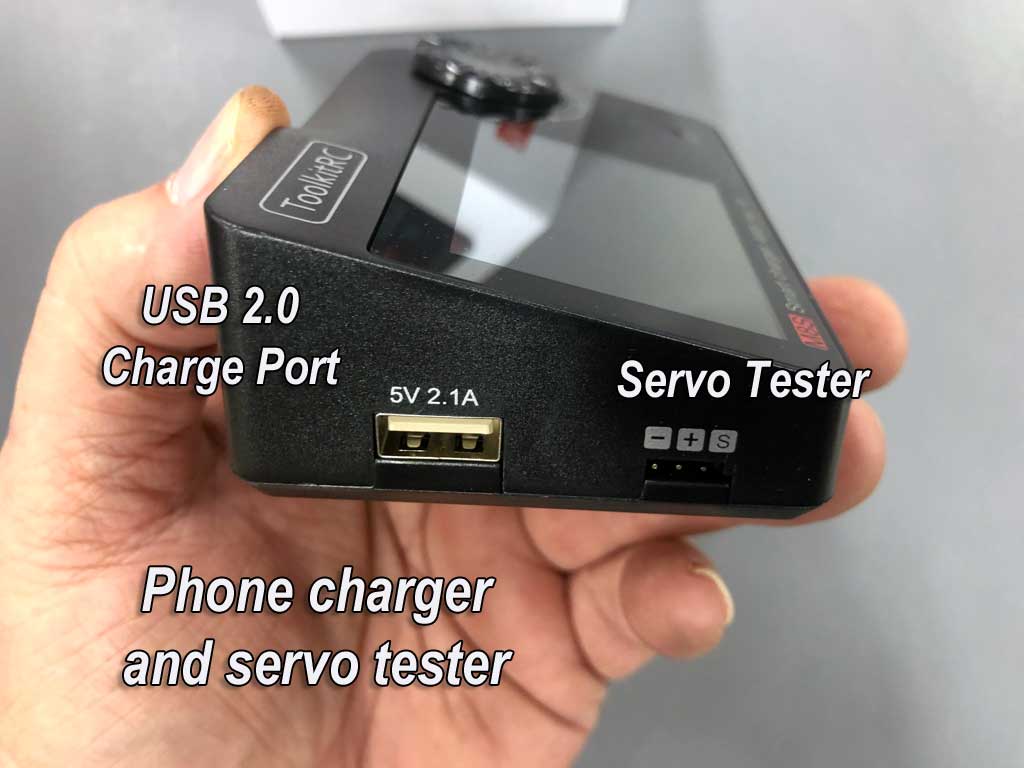

      • USB: 2.1A @5.0V or Upgrade
    • Measuring:
      • PWM: 880-2200us @20-400Hz
      • PPM: 880-2200us*8CH @20-50Hz
      • SBUS: 880-2200us*16CH @20-100Hz
      • Voltage: 1.0-5.0V @1-8S
      • Internal resistance: 10-500mR @1-8S
      • ESC: 300W @Max 15A
    • Output:
      • PWM: 880-2200us @20-400Hz
      • PPM: 880-2200us*8CH @20-50Hz
      • SBUS: 880-2200us*16CH @20-100Hz
      • Power: 1.0-30.0V @1.0-15A Mode:CC+CV
      • OverCurrent Cut Off time: 50ms
    • General:
      • Dimensions: 98x68x35mm
      • Color: White
      • Weight: 142g
      • LCD: 2.2inch, 132x64 Pixel, black and white
