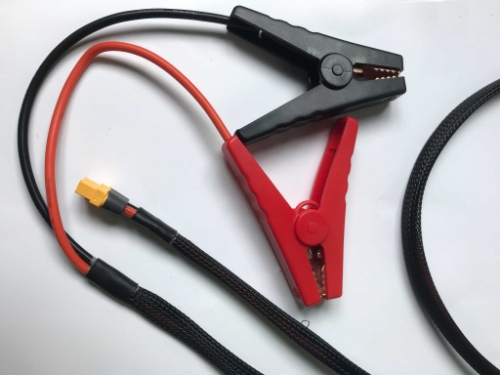

Alligator clamp to XT60F, 12AWG wire, 2m long (+6 feet). The super flexible abrasion resistant silicone jacket leads coils up neatly for storage. The jaws are plastic insulated for safety and plenty large enough to comfortably span 12V automotive battery terminals. Featuring leads, which are soldered to the copper jaws to minimize losses (as compared to screw terminals), these are a great way to bring 12V to power your charger. And to prevent tangles whilst protecting your investment, the leads are sheathed with high quality braided PET and for a nice touch, terminated with adhesive heat shrink at each end.
ProTip: easily extend the length another 2m with our XT60M to XT60F extension.
- Charger:
- Input voltage: 7.0-30.0V @MAX 16A
- Type of battery: Lipo LiHV LiFe @1-8S, NiMh @1-20S, Pb @1-10S
- Balance current: 400mA @2-8S
- Charge power: 300W @MAX 15A
- Discharge power: 300W @MAX 15A Recycle mode, 12W@3A Normal mode
- USB: 2.1A @5.0V or Upgrade
- Measuring:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Voltage: 1.0-5.0V @1-8S
- Internal resistance: 10-500mR @1-8S
- ESC: 300W @Max 15A
- Output:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Power: 1.0-30.0V @1.0-15A Mode:CC+CV
- OverCurrent Cut Off time: 50ms
- General:
- Dimensions: 98x68x35mm
- Color: White
- Weight: 142g
- LCD: 2.2inch, 132x64 Pixel, black and white
