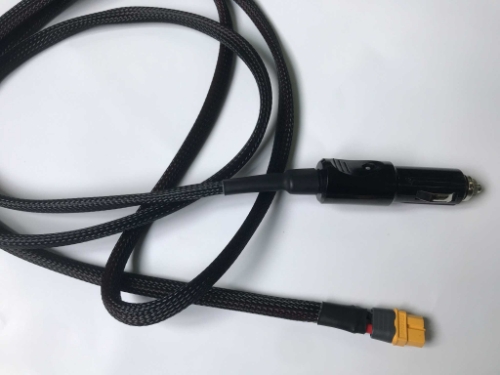

Cigarette plug to XT60F, 12AWG wire, 2m long (+6 feet). Unlike
lightweight alternatives, this heavy duty 20A cigarette plug is held together with
a machine bolt and nut instead of a rivet like the el cheapo imports. This, so the guts
remain accessible for maintenance. Featuring heavy duty 12AWG wire, the super flexible abrasion
resistant silicone jacket leads (high wire count just like what are on batteries) coil up neatly for storage. Expressly designed for tapping into an automotive 12V system, these are a
great way to bring DC power to your charger. Note; the leads are sheathed for protection with high quality braided PET, which as a nice touch, are terminated with adhesive heat shrink at each end to better protect your investment.
ProTip: easily extend the length with our 2m XT60M to XT60F extensions.
- Charger:
- Input voltage: 7.0-30.0V @MAX 16A
- Type of battery: Lipo LiHV LiFe @1-8S, NiMh @1-20S, Pb @1-10S
- Balance current: 400mA @2-8S
- Charge power: 300W @MAX 15A
- Discharge power: 300W @MAX 15A Recycle mode, 12W@3A Normal mode
- USB: 2.1A @5.0V or Upgrade
- Measuring:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Voltage: 1.0-5.0V @1-8S
- Internal resistance: 10-500mR @1-8S
- ESC: 300W @Max 15A
- Output:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Power: 1.0-30.0V @1.0-15A Mode:CC+CV
- OverCurrent Cut Off time: 50ms
- General:
- Dimensions: 98x68x35mm
- Color: White
- Weight: 142g
- LCD: 2.2inch, 132x64 Pixel, black and white
