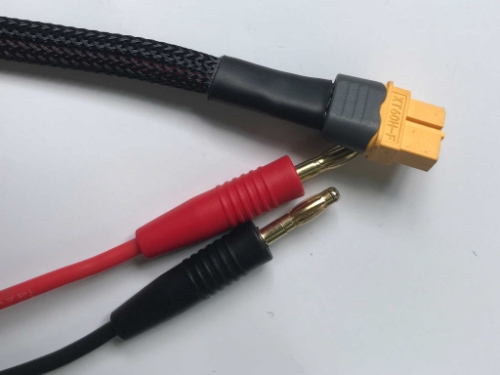

Banana to XT60F, 14AWG wire, 30cm long (1 foot). The super flexible abrasion resistant silicone jacket leads coils up neatly for storage. The jaws are plastic insulated for safety and plenty large enough to comfortably span 12V automotive battery terminals. Featuring leads, which are soldered to the copper jaws to minimize losses (as compared to screw terminals), these are a great way to bring 12V to power your charger.
ProTip: easily extend the length with our 2m XT60M to XT60F extensions.
- Charger:
- Input voltage: 7.0-30.0V @MAX 16A
- Type of battery: Lipo LiHV LiFe @1-8S, NiMh @1-20S, Pb @1-10S
- Balance current: 400mA @2-8S
- Charge power: 300W @MAX 15A
- Discharge power: 300W @MAX 15A Recycle mode, 12W@3A Normal mode
- USB: 2.1A @5.0V or Upgrade
- Measuring:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Voltage: 1.0-5.0V @1-8S
- Internal resistance: 10-500mR @1-8S
- ESC: 300W @Max 15A
- Output:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Power: 1.0-30.0V @1.0-15A Mode:CC+CV
- OverCurrent Cut Off time: 50ms
- General:
- Dimensions: 98x68x35mm
- Color: White
- Weight: 142g
- LCD: 2.2inch, 132x64 Pixel, black and white
