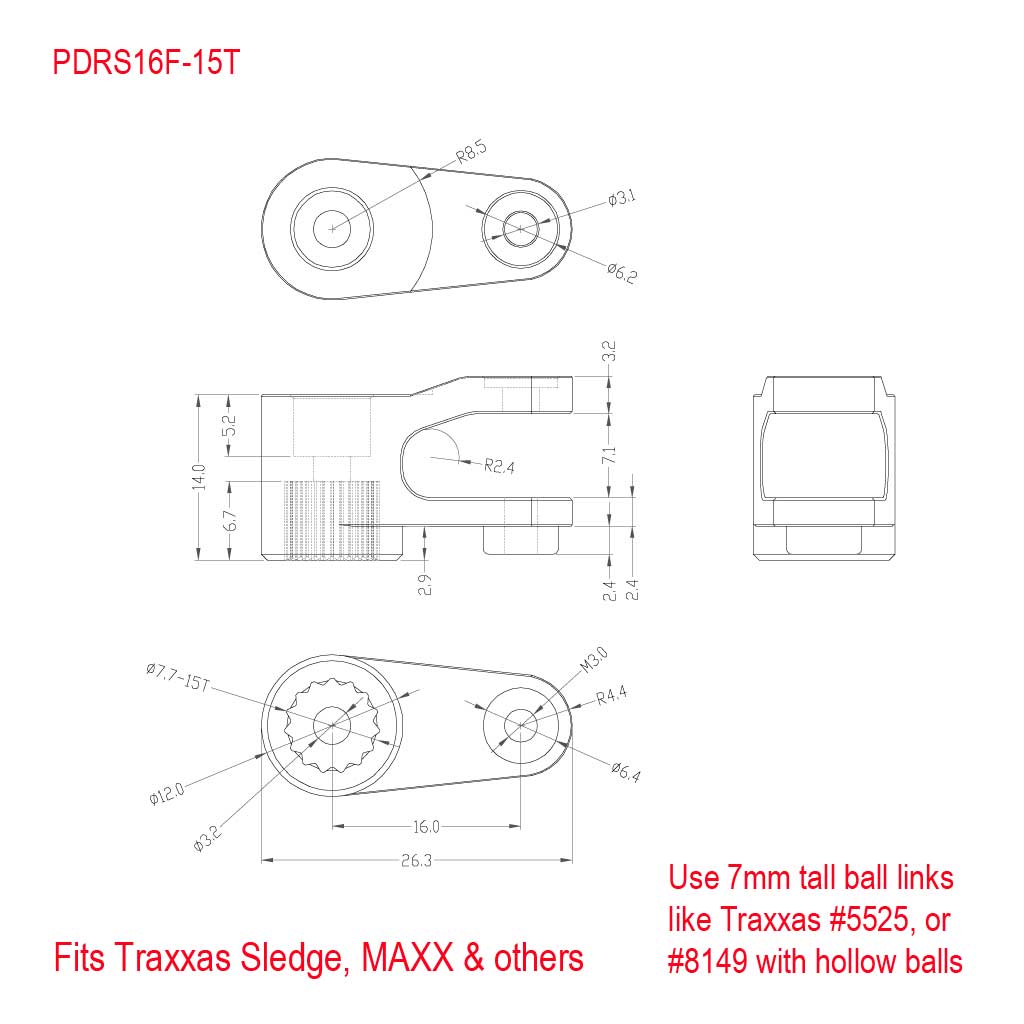

While this 15T forked horn directly fits a Traxxas SLEDGE, the stock Sledge link needs to use a Traxxas 2742 ball. Swing 16mm from center, this servo control horn is stout and will fit other applications where a dual supported ball link is desired.
Install axially on the 15T splined shaft shaft (lightly greased, first), and secured with an M3 Allen-head machine-thread bolt. Then snug up the M2.5 cross bolt. Disassembly is the reverse, remove securing bolt.

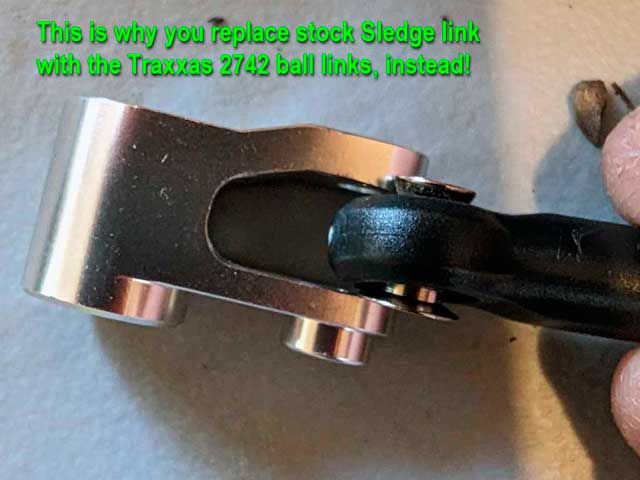

Note: Reuse stock Sledge steering linkage, just swap to Traxxas 2742 ball.

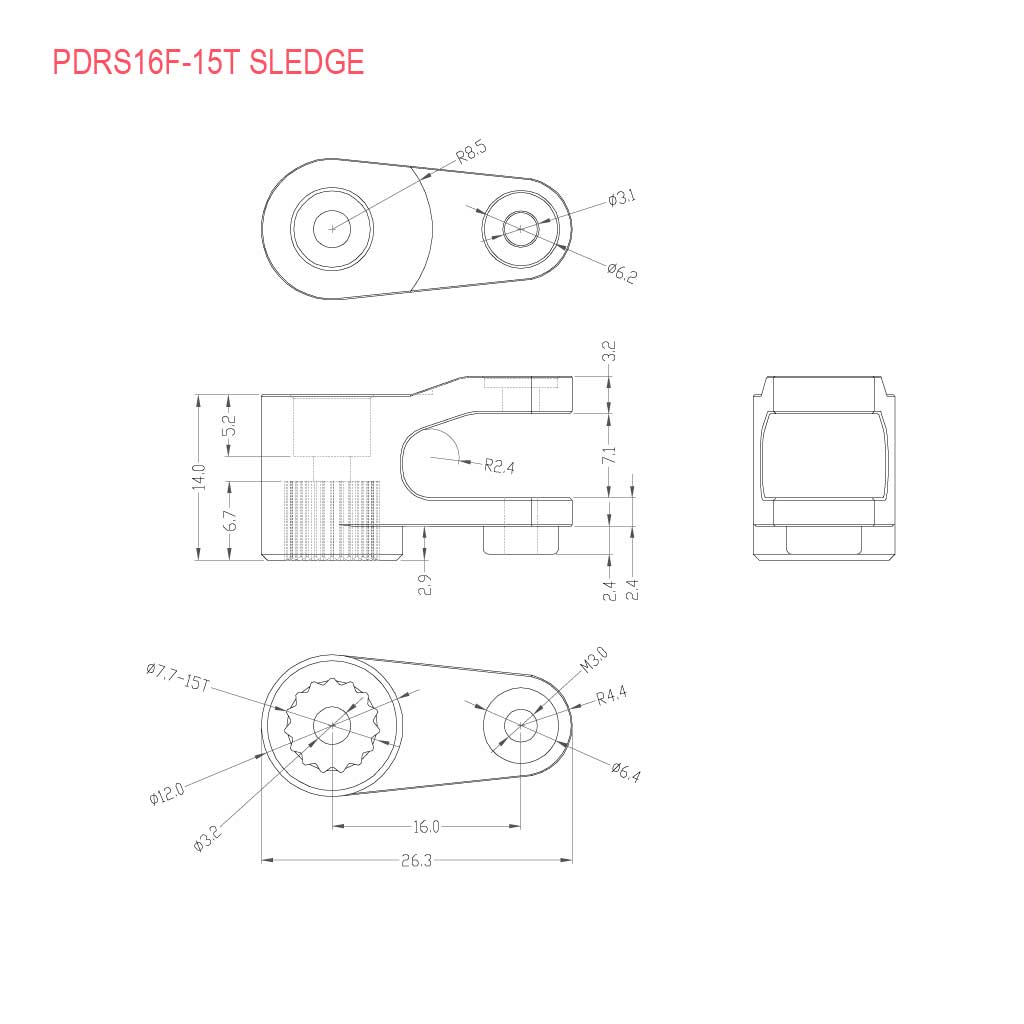

Mounting positions (M3 thread)
Resources
Interested in selecting the best steering servo for your Sledge?
Click to review this selection guide - Traxxas Sledge Steering
